Excalidraw-Obsidian File Structure: Breaking change in 2.2.0

TL;DR

Excalidraw-Obsidian 2.2.0 improves file structure for hybrid notes but breaks backwards compatibility, so plugin updates must happen on every device.

Briefing Cornell Notes

Briefing

Excalidraw-Obsidian’s 2.2.0 update changes the plugin’s file structure in ways that break backwards compatibility—especially for “hybrid notes” that mix a drawing on one side and text on the other. The practical takeaway is straightforward: update the plugin on every device to avoid surprises, and be aware that Excalidraw drawings larger than 2 MB won’t open for Obsidian Insider users on 1.6.0 due to Obsidian’s indexing behavior (fixed in 1.6.1).

Beyond compatibility, understanding the file structure is positioned as a control lever for data portability, link behavior, and sync reliability. The plugin supports two formats: Excalidraw files and Markdown (MD) files. Excalidraw file support mainly matters for compatibility with Excalidraw.com—importing an Excalidraw.com download into an Obsidian vault lets the plugin open it, but a conversion prompt recommends converting the imported file to Markdown to unlock the plugin’s “fancy” Obsidian-native features.

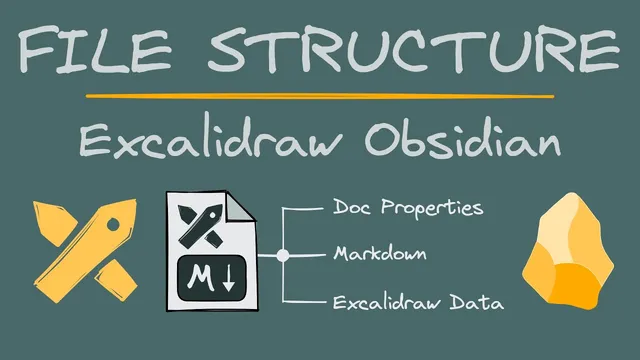

Once converted to Markdown, the note’s content is organized into three major areas: document properties, the “back of the card” notes, and the Excalidraw data sections. Properties can be edited in Source mode, including predefined Excalidraw properties that can override defaults—for example, applying an export theme property to change how the drawing renders when embedded into Markdown. The Excalidraw data portion stores the drawing as JSON, but images are handled separately rather than embedded inside that JSON. For compressed JSON, the plugin can decompress it into a human-readable form (via a command palette action or automation scripts), using the open-source LZ string package; starting with 2.2.0, compression is enabled by default, and converting to decompressed JSON when switching to Markdown view is disabled by default to keep drawing data smaller.

A key behavior involves Markdown comments. By default, the drawing section is commented out so it doesn’t appear in reading mode or exports like PDF/web. Moving the comment boundary can keep drawing data hidden in exports, but it also affects block references: Obsidian won’t index blocks inside comments, so referencing text elements from the drawing into other notes can stop working. Text elements inside the drawing are stored in a dedicated section, and edits made there take precedence over the JSON drawing data—while block reference lines must remain intact.

Finally, embedded files are stored as separate assets in the vault, not inside the Excalidraw JSON. This enables reusing images across drawings and navigating via shared images. The plugin also supports recoloring embedded SVGs using a color map and can enforce an embedded drawing’s size to 100% (using a “100%|…” style pipe parameter) to disable resizing in the scene. If the drawing includes LaTeX equations, they appear under embedded files too.

Autosave adds another reliability layer. Because Obsidian may not let plugins finish saving cleanly before exit, users are advised to force-save and close the drawing tab before leaving Obsidian—particularly when working across multiple devices. The plugin supports different autosave intervals for desktop and mobile, and it always saves when switching tabs, before editing the back of the card notes, and when closing or switching to Markdown view. The tradeoff is sync quota: frequent saves with large drawings can consume Obsidian’s sync limits quickly, so the recommended approach is conservative on desktop and more frequent on mobile where background process recycling is more likely.

Cornell Notes

Excalidraw-Obsidian 2.2.0 changes how drawings are stored inside Obsidian notes, breaking backwards compatibility and requiring plugin updates on all devices—especially for hybrid notes that combine drawing and text. The Markdown conversion unlocks Obsidian-native features like updated links, backlink/outgoing link support, document properties, tags, and reference-text locking. The note is structured into properties, back-of-card markdown, and Excalidraw data sections, with drawing JSON stored separately from embedded images (images live as separate vault assets). Compression is enabled by default in 2.2.0 using LZ string, and decompression to human-readable JSON is available when needed. Commenting rules control what appears in reading mode/exports and can also break block indexing for cross-note references, so comment placement matters. Autosave behavior and sync quota considerations determine how often large drawings should be saved across desktop and mobile.

What changes in Excalidraw-Obsidian 2.2.0 can break existing drawings, and what should users do immediately?

The 2.2.0 release improves the plugin’s file structure specifically to better support hybrid notes (drawing on one side, text on the other). Those improvements break backwards compatibility, so users should update the plugin on all devices to avoid unexpected behavior when opening older drawings. Separately, Obsidian Insider users on 1.6.0 may find drawings larger than 2 MB won’t open because Obsidian stopped indexing large files; that issue is already fixed in 1.6.1 and is not caused by Excalidraw updates.

Why does converting an imported Excalidraw.com file to Markdown matter for Obsidian features?

Importing an Excalidraw.com download into an Obsidian vault allows the plugin to open it, but the conversion warning recommends switching to Markdown to gain the plugin’s benefits. In Markdown view, links inside drawings update with Obsidian, enabling backlink and outgoing link features. Document properties become available, and users can add tags and notes on the back of the drawing. The format also supports locking reference text from the drawing in other notes.

How is the Markdown note structured after conversion, and what does each section do?

The note’s top-level structure includes document properties at the top, back-of-card notes below properties but above the Excalidraw data section, and then the Excalidraw data itself. Properties can be edited in Source mode, including predefined Excalidraw properties that can override rendering behavior (e.g., an export dark property to change how the drawing looks when embedded). The Excalidraw data section stores the drawing as JSON (with images not embedded in that JSON). The back-of-card notes are standard Markdown sections used for additional text and metadata.

What’s the role of compressed JSON and how can users inspect or modify it?

Starting with Excalidraw-Obsidian 2.2.0, compression is enabled by default in plugin settings. The drawing JSON may be stored in compressed form, using the open-source LZ string package. When switching to Markdown view, converting compressed JSON to normal JSON is disabled by default; however, users can decompress using a command palette action (and also via scripts using Excalidraw automation). Decompression is useful when manually tweaking the JSON.

How do comments affect exports and block references, and what rule prevents reference breakage?

By default, the drawing section is commented out to keep it from showing in reading mode and from being exported to PDF/web. Users can move the comment boundary so Excalidraw data stays hidden in exports, but doing so can stop block referencing from working because Obsidian does not index blocks inside comments. To keep references functional, block reference lines must remain intact at the end of the lines when editing text elements in Markdown view.

Where do embedded images and SVG recoloring live in the file structure, and what does that enable?

Embedded images are not stored inside the Excalidraw JSON; instead, Excalidraw stores them separately in the vault. This separation enables referencing and reusing images across drawings and using shared images to navigate between notes. SVG recoloring is supported via a color map, though it’s described as currently hard to use. The plugin can also anchor an embedded drawing’s size to 100% of its original scale using a pipe-based parameter, which disables resizing in the scene.

Review Questions

If a user wants block references from drawing text elements to keep working, what must they avoid changing regarding comments and block reference lines?
What are the practical differences between Excalidraw file support and converting to Markdown in terms of link behavior and Obsidian features?
How do autosave intervals and “always save” triggers interact with Obsidian sync quota when working on desktop vs mobile?

Key Points

1
Excalidraw-Obsidian 2.2.0 improves file structure for hybrid notes but breaks backwards compatibility, so plugin updates must happen on every device.
2
Converting imported Excalidraw.com drawings to Markdown unlocks Obsidian-native link updates, backlinks/outgoing links, document properties, tags, and reference-text locking.
3
Markdown notes split content into properties, back-of-card Markdown, and Excalidraw data sections; Excalidraw JSON stores the drawing while images live as separate vault assets.
4
Compression is enabled by default in 2.2.0 using LZ string; decompression to readable JSON is available via command palette or scripts when manual edits are needed.
5
Comment placement controls what appears in reading mode and exports; moving comments can break block indexing and therefore block references.
6
Text element edits in Markdown view override the drawing JSON, but block reference lines must remain intact to preserve cross-note references.
7
Autosave behavior differs by platform: desktop can be set conservatively to protect sync quota, while mobile may need more frequent saves due to background process recycling risks.

Highlights

The 2.2.0 file-structure update is a compatibility break, driven by better support for hybrid notes—update the plugin everywhere to prevent issues.

Markdown conversion is the gateway to Obsidian features like updated links, backlinks/outgoing links, document properties, tags, and locked reference text.

Excalidraw JSON stores drawing data, while images are stored separately in the vault—making reuse and shared navigation possible.

Commenting the drawing section hides it from reading mode and exports, but blocks inside comments aren’t indexed, so block references can fail.

Autosave triggers include tab switching and closing/editing transitions; on mobile, more frequent autosave helps reliability but can consume sync quota faster with large drawings.

Topics

Excalidraw File Structure
Obsidian Markdown Conversion
Hybrid Notes
Compressed JSON
Autosave and Sync Quota
