What does the sphere example $S^2\subset\mathbb{R}^3$ show concretely?

For the sphere, choosing $N(x)=x$ gives an outward unit normal because the position vector on $S^2$ has length one. Using spherical coordinates, the determinant built from $N(x)$, $\partial/\partial\theta$, and $\partial/\partial\varphi$ yields the area density $\sin\theta$. The cross product connection also appears: the cross product of two tangent vectors produces a normal vector whose magnitude matches the determinant information, though it may not be normalized.

Manifolds 37 | Unit Normal Vector Field

Q: How is a normal vector field defined for a submanifold M inside a larger manifold $\widetilde M$?

At each point p in M, the tangent space $T_pM$ sits inside $T_p\widetilde M$. A normal vector field assigns to p a vector in $T_p\widetilde M$ that lies in the orthogonal complement of $T_pM$ (with orthogonality taken using the Riemannian metric $g$), excluding the zero vector. This makes the assigned vector perpendicular to every tangent direction of M at p.

Q: Why does orientability become equivalent to the existence of a continuous unit normal field for codimension-one submanifolds in $\mathbb{R}^n$?

For codimension-one embeddings in $\mathbb{R}^n$, having a continuous unit normal field means there is a consistent choice of “side” across the whole manifold: the normal cannot flip abruptly without breaking continuity. That consistency is exactly what orientability captures. The Möbius strip illustrates the failure: any attempt to choose normals continuously forces a flip, so no continuous unit normal field exists.

Q: How does the unit normal field produce the canonical volume form $\Omega_M$?

The canonical $(n-1)$-form on M is obtained by inserting the normal vector into the ambient $n$-dimensional volume form. In determinant language, $\Omega_M$ can be computed by taking the determinant in $\mathbb{R}^n$ with $N(x)$ as the first input and the remaining inputs coming from tangent vectors to M at x. This turns an $n$-dimensional volume element into an $(n-1)$-dimensional one on the tangent space of M.

TL;DR

A normal vector field on a submanifold assigns to each point a vector orthogonal to the tangent space inside the ambient tangent space.

Briefing Cornell Notes

Briefing

A continuous unit normal vector field on a codimension-one submanifold isn’t just a geometric decoration—it ties together orientability and the canonical volume form, giving a practical way to compute areas (and more generally, volume forms) using determinants in the ambient space.

Start with an orientable Riemannian manifold M of dimension n−1 embedded in a larger Riemannian manifold $M$ . At each point, the tangent space $T_{p} M$ sits inside $T_{p} M$ , so one can define the normal space as the orthogonal complement of $T_{p} M$ in $T_{p} M$ (excluding the zero vector). A normal vector field assigns to each point p a vector in $T_{p} M$ that is orthogonal to the tangent space. “Continuous” means these assigned vectors vary continuously as p moves, typically expressed in local coordinates via continuous coefficient functions.

The key refinement is the “unit” condition: a continuous unit normal vector field $N$ must satisfy $∥ N (x) ∥ = 1$ using the Riemannian metric $g$ (so $∥ N (x) ∥ = g_{x} (N (x), N (x))$ ). This unit requirement is what makes the normal field robust enough to connect to global topology. For codimension-one submanifolds in $R^{n}$ (with the standard metric), orientability of M is equivalent to the existence of a continuous unit normal vector field. Intuitively, orientability means the manifold admits a consistent choice of “side,” and a continuous normal vector field provides exactly that consistency. The classic contrast is the Möbius strip: any attempt to choose normals continuously forces a flip, so no continuous unit normal field can exist.

Once such a field exists, it directly produces the canonical ( $n - 1$ )-dimensional volume form $Ω_{M}$ . The relationship is expressed by inserting the normal vector into the ambient $n$ -dimensional volume form on $R^{n}$ (often written using determinants). Concretely, $Ω_{M}$ can be computed by taking the determinant in the ambient space with $N (x)$ as the missing input vector, effectively turning an $n$ -vector determinant into an $(n - 1)$ -form on the tangent space of M. Geometrically, for a surface in $R^{3}$ , this matches the idea that the “height” factor is controlled by the unit normal—so the 3D volume element reduces to the surface area element.

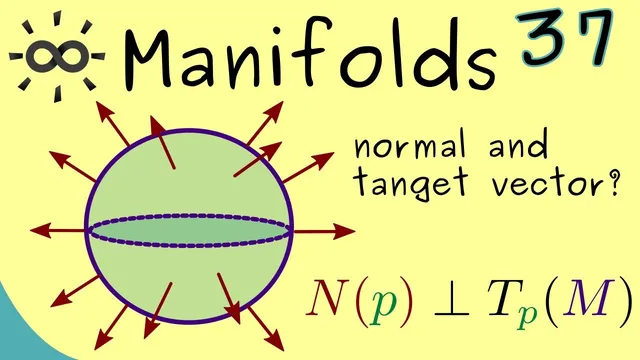

An example makes the machinery tangible: for the sphere $S^{2} \subset R^{3}$ , choosing $N (x) = x$ gives a unit normal pointing outward. Using spherical coordinates, the determinant built from $N (x)$ , $\partial / \partial θ$ , and $\partial / \partial φ$ yields the canonical area density on $S^{2}$ , producing $sin θ$ . The discussion also links back to the cross product: the cross product of two tangent vectors produces a normal vector whose magnitude encodes the same determinant information, but without normalization—explaining why all these constructions converge on the canonical volume form. The payoff is clear: with a continuous unit normal field, volume-form computations on submanifolds can be reduced to determinant calculations in the surrounding Euclidean space.

Cornell Notes

For a codimension-one submanifold M inside $R^{n}$ , a continuous unit normal vector field $N$ exists exactly when M is orientable. The normal field is defined by taking at each point the vector orthogonal to $T_{p} M$ (in the ambient tangent space) and requiring $∥ N (x) ∥ = 1$ using the Riemannian metric. Once such an $N$ is available, the canonical $(n - 1)$ -dimensional volume form $Ω_{M}$ is obtained by inserting $N (x)$ into the ambient $n$ -dimensional volume form—equivalently, by using a determinant in $R^{n}$ with $N (x)$ as the missing vector. For $S^{2} \subset R^{3}$ , choosing $N (x) = x$ and using spherical coordinates produces the familiar $sin θ$ area density.

How is a normal vector field defined for a submanifold M inside a larger manifold $M$ ?

At each point p in M, the tangent space

T_{p} M

sits inside

T_{p} M

. A normal vector field assigns to p a vector in

T_{p} M

that lies in the orthogonal complement of

T_{p} M

(with orthogonality taken using the Riemannian metric

g

), excluding the zero vector. This makes the assigned vector perpendicular to every tangent direction of M at p.

What extra condition turns a normal vector field into a continuous unit normal vector field?

Continuity means the normal vectors vary continuously as the point moves on M, often expressed in local coordinates by requiring the coefficients in a chart to be continuous functions. The “unit” condition requires

∥ N (x) ∥ = 1

for every x in M, where

∥ N (x) ∥ = g_{x} (N (x), N (x))

. This fixes the scale of the normal so it can be used consistently in volume-form formulas.

Why does orientability become equivalent to the existence of a continuous unit normal field for codimension-one submanifolds in $R^{n}$ ?

For codimension-one embeddings in

R^{n}

, having a continuous unit normal field means there is a consistent choice of “side” across the whole manifold: the normal cannot flip abruptly without breaking continuity. That consistency is exactly what orientability captures. The Möbius strip illustrates the failure: any attempt to choose normals continuously forces a flip, so no continuous unit normal field exists.

How does the unit normal field produce the canonical volume form $Ω_{M}$ ?

The canonical

(n - 1)

-form on M is obtained by inserting the normal vector into the ambient

n

-dimensional volume form. In determinant language,

Ω_{M}

can be computed by taking the determinant in

R^{n}

with

N (x)

as the first input and the remaining inputs coming from tangent vectors to M at x. This turns an

n

-dimensional volume element into an

(n - 1)

-dimensional one on the tangent space of M.

What does the sphere example $S^{2} \subset R^{3}$ show concretely?

For the sphere, choosing

N (x) = x

gives an outward unit normal because the position vector on

S^{2}

has length one. Using spherical coordinates, the determinant built from

N (x)

\partial / \partial θ

, and

\partial / \partial φ

yields the area density

sin θ

. The cross product connection also appears: the cross product of two tangent vectors produces a normal vector whose magnitude matches the determinant information, though it may not be normalized.

Review Questions

In terms of tangent spaces and the Riemannian metric, what does it mean for a vector to be “normal” to M at a point?
State the equivalence between orientability and the existence of a continuous unit normal field, and explain why the Möbius strip fails it.
How does inserting a unit normal vector into an ambient determinant lead to the canonical volume form on M?

Key Points

1
A normal vector field on a submanifold assigns to each point a vector orthogonal to the tangent space inside the ambient tangent space.
2
A continuous unit normal vector field requires both continuity and the unit-length condition $g_{x} (N (x), N (x)) = 1$ .
3
For codimension-one submanifolds in $R^{n}$ , orientability is equivalent to the existence of a continuous unit normal vector field.
4
The canonical $(n - 1)$ -dimensional volume form $Ω_{M}$ is obtained by inserting the normal vector into the ambient $n$ -dimensional volume form (determinant formulation).
5
For surfaces in $R^{3}$ , the unit normal links 3D volume elements to surface area elements.
6
On $S^{2} \subset R^{3}$ , choosing $N (x) = x$ and using spherical coordinates yields the familiar $sin θ$ area density via a determinant.

Highlights

Orientability for codimension-one submanifolds in Rn matches the existence of a continuous unit normal vector field.

The canonical volume form on M can be computed by a determinant in the ambient space with the unit normal inserted.

For S2⊂R3, taking N(x)=x and using spherical coordinates produces the sinθ factor directly.

The cross product of tangent vectors encodes the same determinant information as the normal-vector volume-form formula, differing mainly by normalization.

Topics

Unit Normal Vector Field
Orientability
Canonical Volume Form
Determinant Formula
Cross Product Geometry
