Obsidian Excalidraw 2.13: Complete Control Over Auto-Export Location & Type

TL;DR

Excalidraw 2.13 adds startup-script hooks that let users redirect auto-exported PNG/SVG files to custom folders instead of keeping them beside the source drawing.

Briefing Cornell Notes

Briefing

Auto-exported Excalidraw images no longer have to land beside the source file. Version 2.13 adds JavaScript “hooks” that let users redirect PNG/SVG exports to custom folders (like an assets tree) and control what gets exported and what gets deleted—solving a long-running pain point where Excalidraw automatically creates duplicate files in the same directory.

The core workflow starts with understanding the existing auto-export settings inside the Obsidian Excalidraw plugin: users can enable automatic export of all drawings to PNG and/or SVG. Many avoid this blanket approach because it can generate thousands of extra files in a vault. Instead, the more precise method uses per-note control via front matter (document properties). When a drawing is saved, Excalidraw can auto-export an SVG/PNG right next to the .excalidraw file—useful for some cases, but limiting when the goal is to keep vault organization clean.

Excalidraw 2.13’s solution is more flexible but requires setup. Users create a startup script from the plugin settings (under “Excalidraw automate”), which installs a file into the vault. Two new triggers are highlighted: an “on image export path” hook and an “on trigger auto export” hook. The first hook receives detailed data about the export event—export file path, the source Excalidraw file, export extension, theme variants (light/dark), and the action type (export/rename/move/delete). That action detail matters because during delete, the source .excalidraw file is already gone, so front matter-based logic can’t be read.

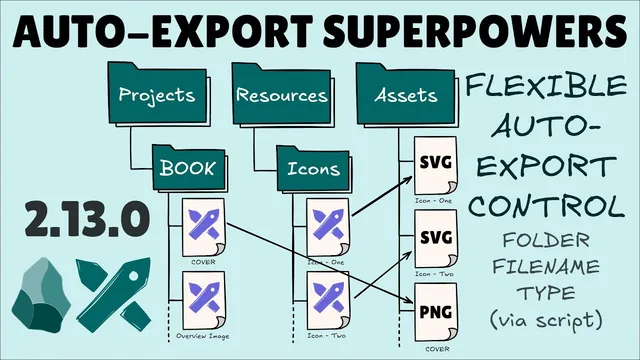

A practical example shows SVG/PNG files being redirected into a target folder instead of being created beside the source drawing. Renames and moves stay linked: when the source file is renamed or deleted, the exported asset follows. But when deletion logic depends on front matter, exported files can be left behind because the metadata disappears before the hook runs. To avoid clutter, the script can instead rely on stable identifiers such as filename conventions (for example, names starting with “icon -” for logos/icons). With that approach, exports can be routed to the correct asset folders and removed reliably when the source drawing is deleted.

The second trigger—“on trigger auto export”—runs before Excalidraw performs its automatic export. It receives an auto-export configuration object (including whether the output should be PNG, SVG, or the legacy Excalidraw format, plus theme handling). This enables rule-based automation that can override plugin settings. For instance, a naming convention can force SVG export (and suppress PNG/legacy outputs) for certain assets, regardless of what the global auto-export configuration says.

Finally, the automation supports deeper organization. The script can mirror the source folder structure under an assets root (e.g., assets/<vault path>/...), preventing overwrites that might occur in a flat folder. The tradeoff is that automation increases the risk of naming conflicts, so careful testing is recommended—especially when multiple files could generate the same export filename. The result is a highly controllable pipeline: export routing, conditional output types, and consistent cleanup, all driven by front matter, filenames, and folder-aware path logic.

Cornell Notes

Excalidraw 2.13 introduces startup-script hooks that give fine-grained control over automatic exports inside Obsidian. Instead of always creating PNG/SVG files next to the source .excalidraw drawing, users can redirect outputs to custom locations (like an assets folder) and tailor which formats get produced. The “on image export path” hook receives event data including export path, extension, theme variants, and the action type—so renames/moves can be mirrored and deletions can be handled correctly. Because front matter isn’t available during delete, deletion-safe routing often needs stable rules like filename conventions. A second hook, “on trigger auto export,” runs before export and can override output decisions based on naming or folder criteria, enabling fully automated, organized asset pipelines.

Why does front matter-based routing break during deletion, and how does that affect exported files?

During the delete action, the source .excalidraw file is already removed by the time the hook runs. That means document properties/front matter can’t be read, so logic that depends on something like an “is asset” flag won’t trigger. The result can be orphaned exported PNG/SVG files that remain in the assets folder even after the source drawing is deleted. Renames and moves still work because the source file (and its metadata) is available when those actions occur.

What data does the “on image export path” hook receive, and why is the action type important?

The hook receives an object with fields such as the export file path (where the PNG/SVG would be written), the source Excalidraw file, the export extension, and theme-related behavior for light/dark variants. It also includes the legacy Excalidraw path property (relevant when the action is move/rename) and an “action” field indicating whether the event is export/rename/move/delete. The action type determines what information is still available—especially during delete—so it directly affects whether metadata-driven cleanup can work.

How can filename conventions be used to make deletion cleanup reliable?

Instead of relying on front matter, the script can route exports based on filename patterns that still exist during delete. For example, drawings whose names start with “icon -” (icons/logos/stick figures) can be exported into specific asset subfolders. Because the filename remains available, the deletion logic can still identify which exported asset corresponds to the deleted source drawing, allowing the exported PNG/SVG to be removed alongside the source.

What does the “on trigger auto export” hook enable that the basic auto-export settings don’t?

The “on trigger auto export” hook runs before Excalidraw performs auto export. It receives an autoexport configuration object (output type like PNG/SVG/legacy Excalidraw format, plus theme options). That timing lets users override or refine what gets exported regardless of global plugin settings. For instance, a rule can force SVG export for files matching a naming convention while suppressing PNG and legacy outputs—even if the plugin’s auto-export settings would otherwise export them.

How does mirroring folder structure under an assets root help avoid overwrites?

If exports are placed into a flat folder, two different source drawings with the same export filename could overwrite each other’s SVG/PNG. By extending the export path to mirror the source folder structure under assets (e.g., assets/<original path>/...), each drawing’s export lands in a unique location. The transcript demonstrates this by creating nested folders and showing the exported asset appearing under the corresponding assets subdirectories.

Review Questions

What specific limitation of front matter during delete makes orphaned exported assets possible, and what alternative rule can prevent it?
How do the two hooks differ in timing and purpose: one for choosing the export path, and one for deciding whether/what to auto-export?
Why can a flat assets folder cause export conflicts, and how does path mirroring reduce that risk?

Key Points

1
Excalidraw 2.13 adds startup-script hooks that let users redirect auto-exported PNG/SVG files to custom folders instead of keeping them beside the source drawing.
2
The “on image export path” hook provides export path, source file, extension, theme variant behavior, and—critically—the action type (including delete).
3
Front matter/document properties can’t be relied on for deletion cleanup because the source file is already gone when delete hooks run.
4
Filename conventions (e.g., a prefix like “icon -”) can drive both export routing and reliable deletion of the corresponding exported assets.
5
The “on trigger auto export” hook runs before auto export and can override output type and theme behavior using the autoexport configuration passed into the hook.
6
Mirroring the source folder structure under an assets root helps prevent filename collisions that can occur in a flat export directory.
7
Automation increases the chance of unintended overwrites or leftover files, so testing with realistic naming and folder scenarios is essential.

Highlights

A long-standing request—saving Excalidraw auto-exported PNG/SVG into a different folder—gets addressed via new 2.13 hooks in a startup script.

Deletion is the tricky case: front matter isn’t available during delete, so scripts must use stable identifiers like filenames for cleanup.

The pre-export “on trigger auto export” hook can force SVG-only exports (or other combinations) regardless of global auto-export settings.

Export path logic can mirror nested folders under assets to avoid overwriting exports with the same name.

Topics

Excalidraw Auto Export
Obsidian Startup Scripts
JavaScript Hooks
Assets Folder Organization
Front Matter vs Filename Rules
