Why Machines That Bend Are Better

Compliant mechanisms—devices built from parts that flex instead of traditional hinges, bearings, and separate springs—turn “flexibility” from a weakness into a design advantage. The central claim is that bending components can deliver high force, precise motion, long fatigue life, and compact, lightweight hardware, all while reducing backlash and wear. That combination matters because many real-world systems fail not from lack of strength, but from mechanical looseness, friction, lubrication needs, and accumulated degradation over time.

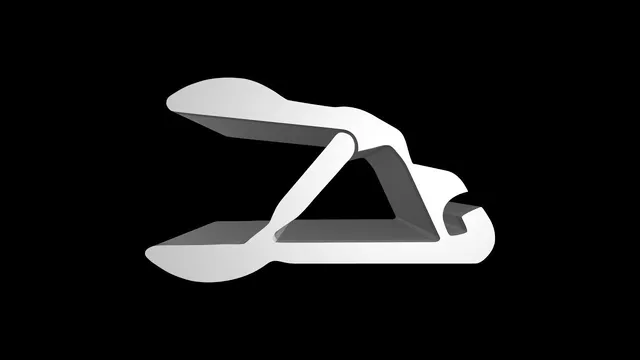

The episode grounds the idea with a gripper made from a single piece of plastic. By using flexible hinges integrated into the geometry, the gripper can break chalk and generate roughly a 30-to-1 force amplification—comparable to far more complex tools like vice grips. The manufacturing pitch is equally practical: fewer parts mean cheaper production, and the geometry can be made with processes such as injection molding or even extrusion followed by cutting. A micro switch example reinforces the durability point: fatigue testing reportedly reached over a million cycles without failure.

Precision is treated as a key surprise. A small demonstration shows that a compliant structure can rotate in space without the expected displacement, and the explanation ties that behavior to the absence of backlash. Traditional hinges introduce delay and play when motion reverses because of clearance and “give” in the pin-and-hole contact. That play causes wear and typically demands lubrication. Compliant mechanisms avoid that slack, which translates into better performance and less maintenance.

The advantages scale down to microfabrication. Designs inspired by chip manufacturing use photo-lithography to create tiny compliant features, including silicon-based mechanisms built from materials as brittle as glass. Once the design is solved, the same approach can be adapted to other materials such as PLA, and the episode notes that etched microstructures can be produced using computer-chip processes.

Compliant mechanisms also show up in space and heavy-duty engineering. A NASA-linked example uses a one-piece titanium hinge that can replace bearings for deploying solar panels, achieving large deflections (up to about ±90 degrees and 180-degree deflection) while still behaving like a solid component. Another NASA-related thruster concept uses a single titanium structure with bending beams to steer a thruster in different directions, avoiding pinch points for fuel and electrical lines and enabling one thruster to substitute for two.

Finally, the episode returns to an extreme safety requirement: a nuclear weapons safing and arming device designed to prevent random vibrations—such as those from an earthquake—from inadvertently arming the system. The design requirement was extreme compactness, down to components sized around a human hair, and high-speed operation at 72 Hz. The device’s long-term reliability hinges on predictable motion even after decades in a silo. Whether the prototypes ever become operational remains classified, but the engineering logic is clear: compliant mechanisms offer compactness, precision, and predictable behavior where mechanical slack and wear would be unacceptable.
